Description

SPECIFICATIONS

Battery: 72v

Brake System: Front disc+Rear dsic

Brand Name: NONE,LNA

Charge Time(h): 5-7h

Curb Weight: 100-200kg

Differential Lock: Equipped

Dimension: 1900*1100*1050mm

Drive: Shaft

Driving Mileage: 50-70km

Driving Type: 4WD

Grade Ability: ≥25°

High-concerned chemical: None

Material: Stainless steel

Maximum Speed: 50-75Km/h

Maximum Torque(Nm): 60-80Nm

Minimum Grand Clearance: 200-250mm

Motor: Brushless

Origin: Mainland China

Payload Capacity: 200-300kg

Place of Origin: Hubei, China

Power: > 1000W, 5000w

Range per charge: 60-70 km

Size: 1900*1100*1050mm

Tire Size: 23*7-12/23*10-12

Top speed: 55-60 km/h

Transmission System: Shaft Drive

Transmission Type: Automatic

Type: Other

Voltage: > 60V

Wheels: 12″

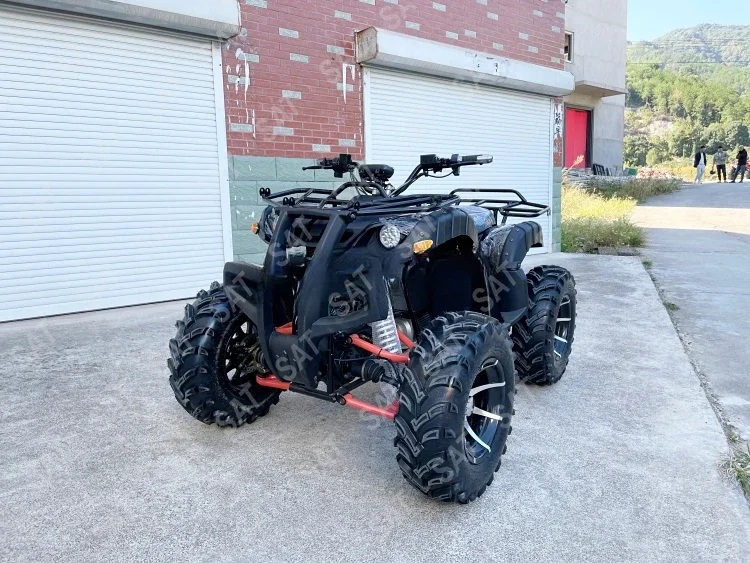

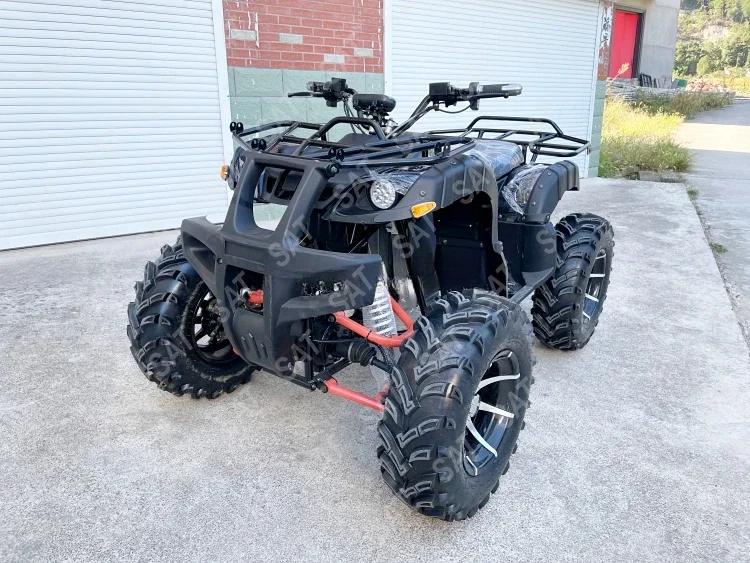

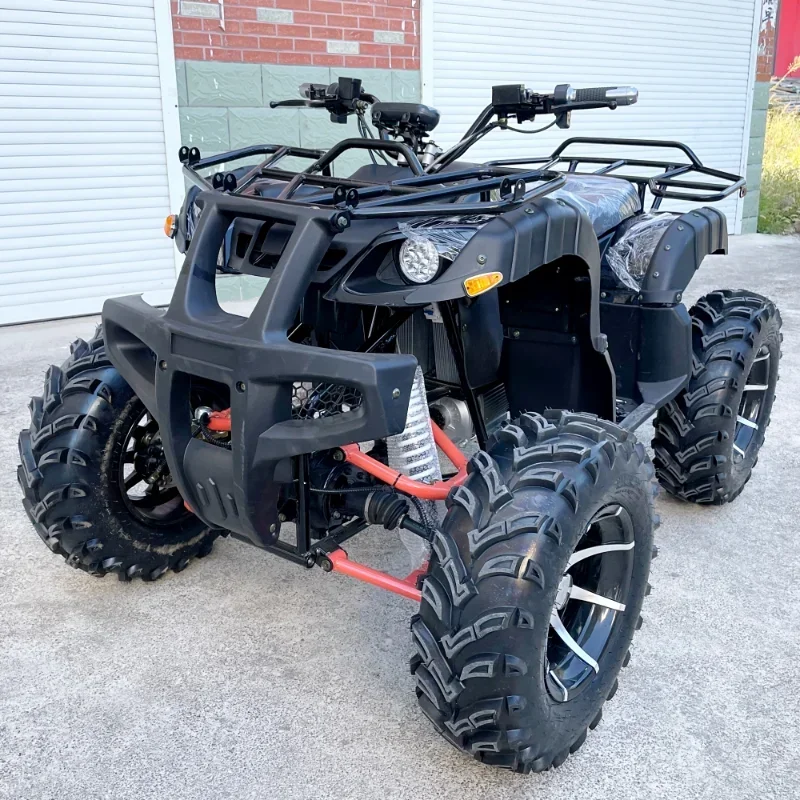

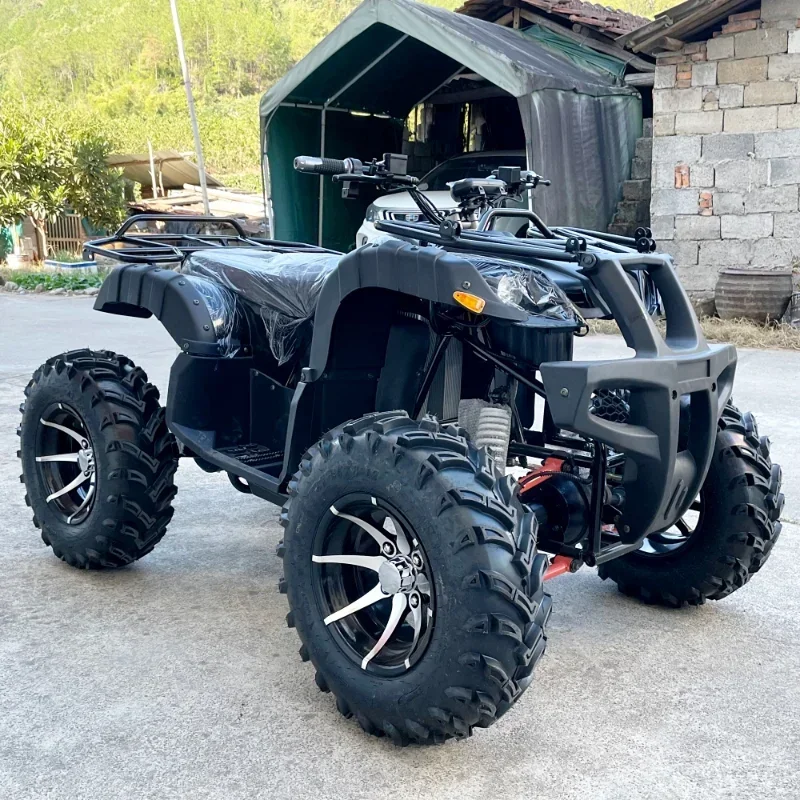

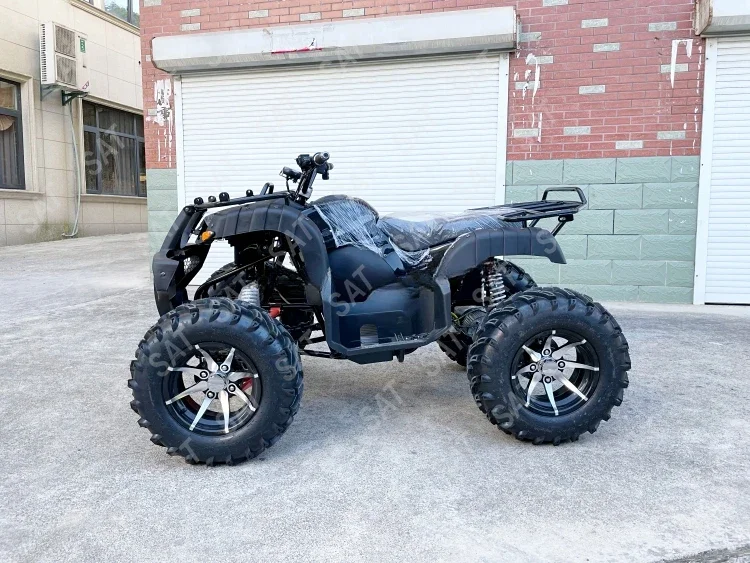

Quite Amazing 5000W Electric ATV Quad Bike 4×4 Wheelers delivers extreme power, performance, and durability for serious off-road riders. Equipped with a high-performance 5000W motor and advanced 4×4 drive system, this electric quad bike provides outstanding torque, strong climbing ability

Specification

Model Number	LNA-EA5000	Power	5000W
Drive	4×4	Motor	Dual Brushless Motor
Range	60-70 km	Top speed	55-60 km/h
Voltage	72v	Colors	Customized
Type	Automatic	Transmission	Shaft
Weight	200kg	Max weight load	200-300kg
Speedmeter	LED	Wheel size	12″ Alloy
Wheel base	1105mm	Brake	Hydraulic Disc
Charging time	5-7 hours	Packing size	1750*1100*700mm
Suspensions	2 in front / 2 in rear	Shaft type	Integrated
