Description
SPECIFICATIONS
Accessories: toolkit
Age Group: Adults, Teens
Applicable People: Unisex
Battery: 48v 15ah lithium battery
Battery Capacity: 720Wh, 15Ah, 48V 15Ah, 720Wh
Battery Position: Integrated Battery
Battery Type: lithium, Rechargeable Battery
Bicycle fork: Air suspension
Bike Suspension Types: Bidirectional
Brake: Hydraulic Disc Brake
Braking System: V Brake/Disc Brake,Hydraulic Disc Brake (Hydraulic Brake Pad)
Brand Name: YTYIN
Certificate: CE
Chain: SUMC-12S
Charging Time: >3 hours
Crankset: 38T
Derailleur: Shimano Deore 12 Speeds
Fork Material: Steel
Frame Height: 16″/18″
Frame Material: Aluminum alloy
Gears: 12 Speed
Grips: 22.2*120mm
High-concerned chemical: None
MOQ: 1
Model Number: EB-04
Motor Type: mid, MID Drive, High Speed, Central Motor
Motor position: Central Motor
Origin: Mainland China
Place of Origin: Shandong, China
Plug Type: US PLUG, swiss plug, european plug, australian plug, british plug
Power Source: Lithium Battery, Integrated Battery
Power Supply: Lithium Battery
Product name: Electric Mountain Bike
Range per Power: 140 -160 km
Rear Hub: gear hub, freewheel hub, Hub Motor
Rim Material: aluminum
Suspension Type: dual, full, Full Suspension
Tire: 27.5/29*2.40
Tire Width: 2.40″, 29*2.40″, 27.5*2.40″
Torque: 140 Nm
Type: Hybrid Bike,Mountain Bike, adult electric bike, Electric Mountain Bike
Voltage: 48V
Warranty: 1 years
Watt-Hour: 720Wh
Wheel Size: 26″
feature: Lightweight, Strong, Electric, Full Suspension, Downhill
motor: MID Drive, mid, High Speed, Central Motor

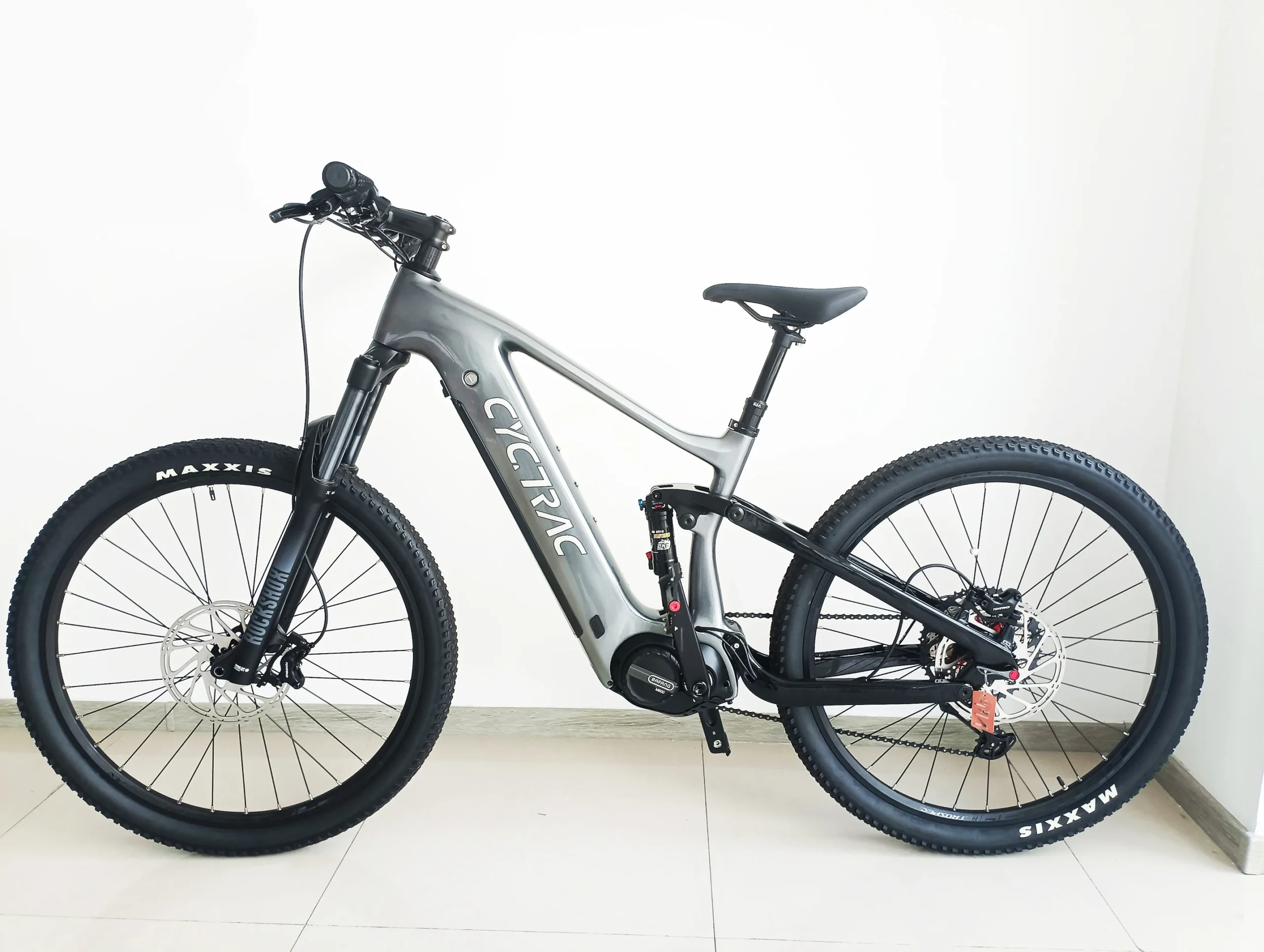

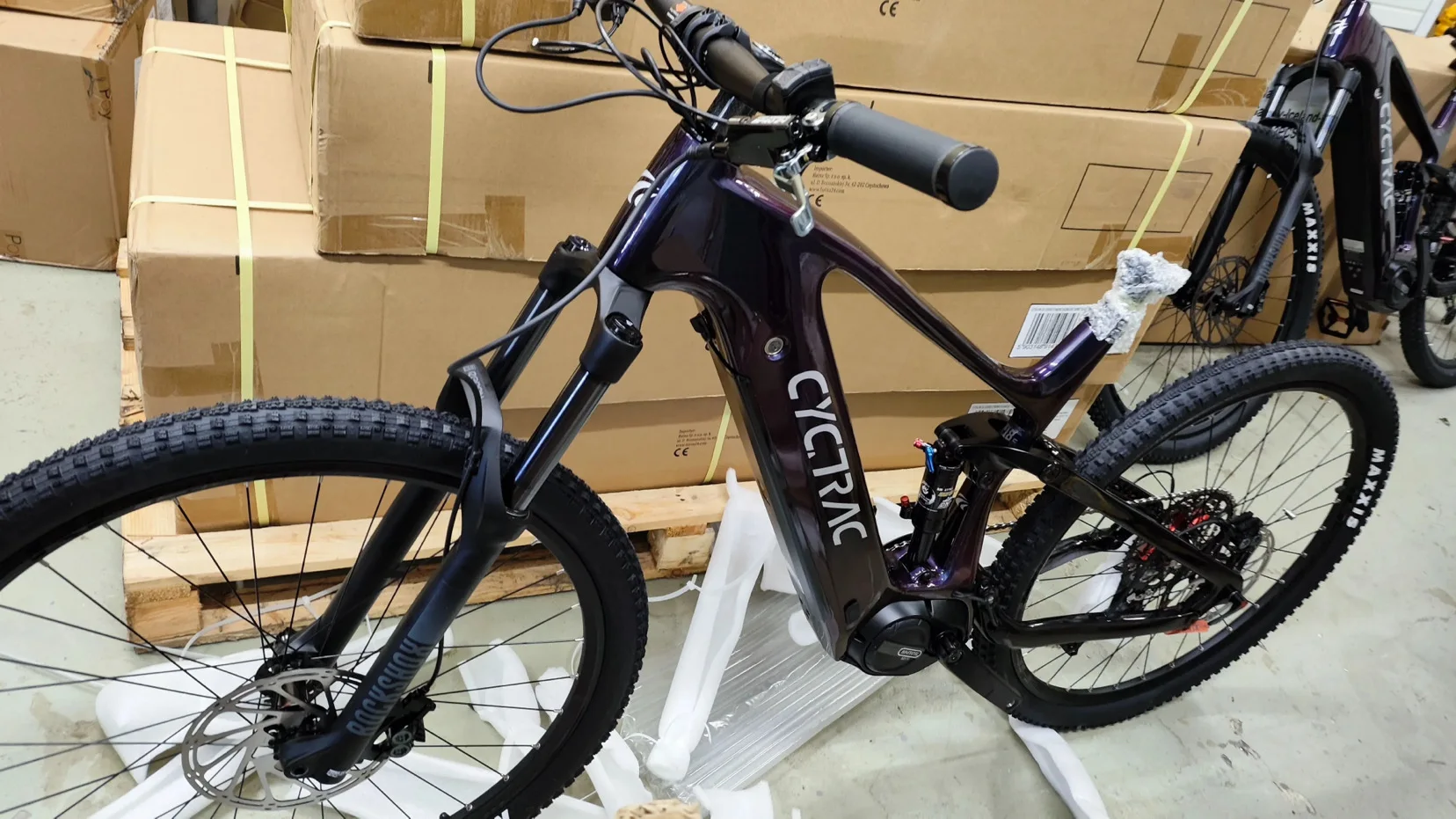

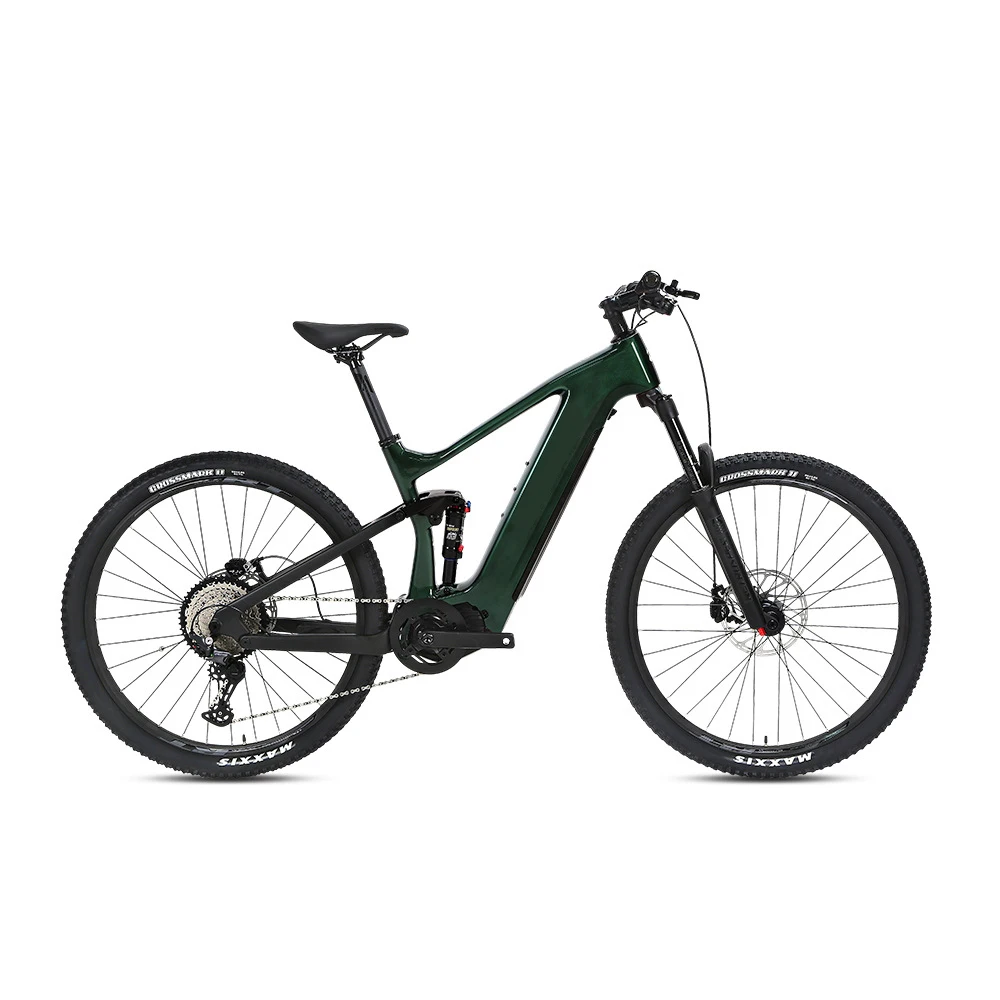

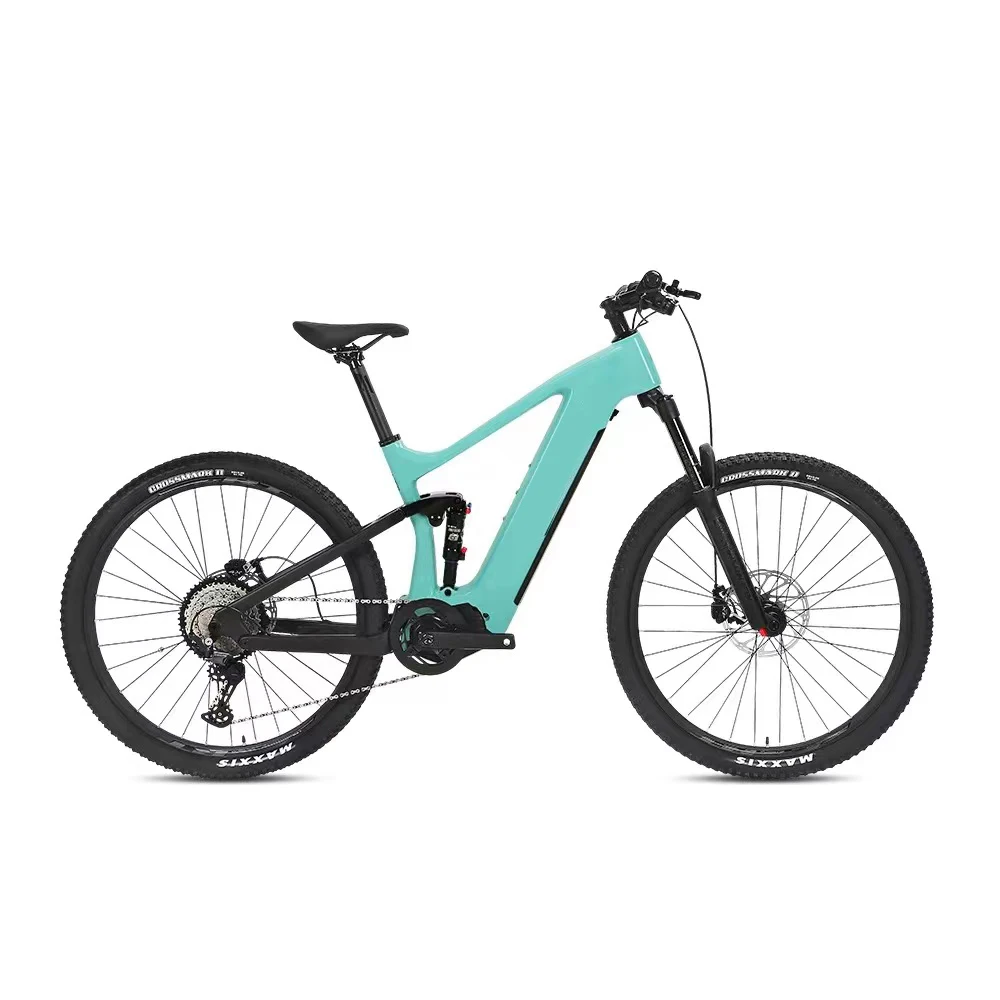

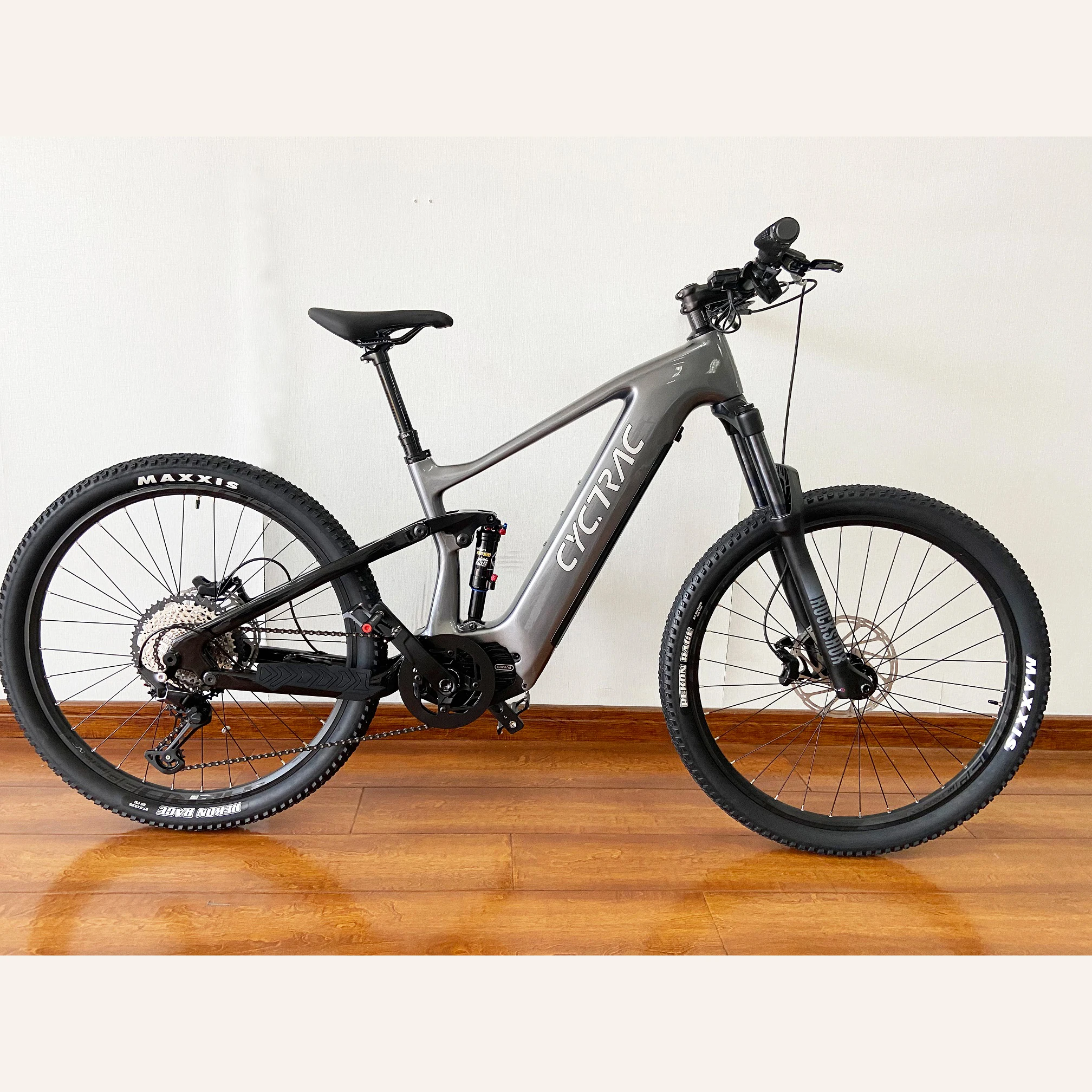

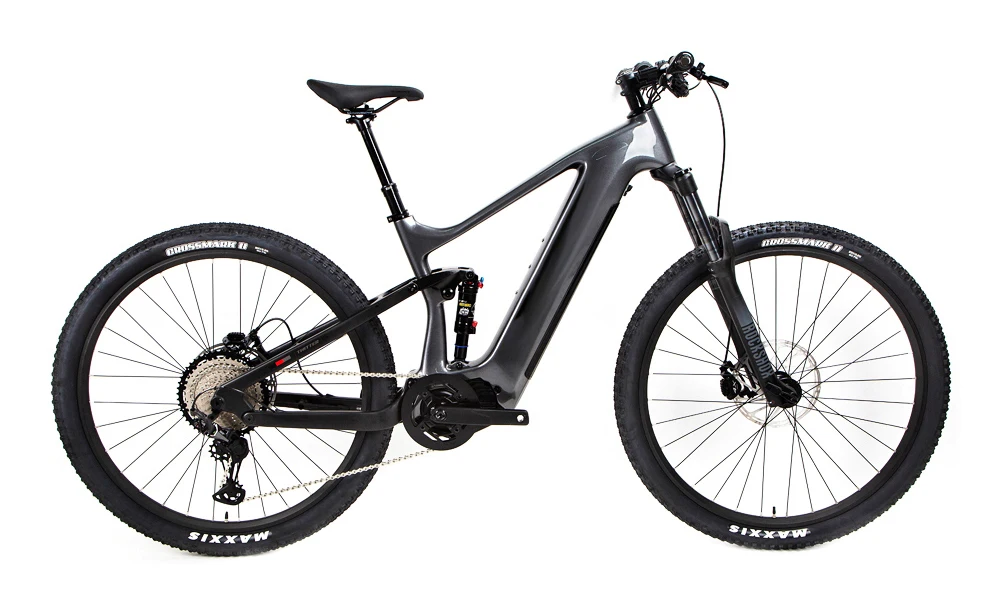

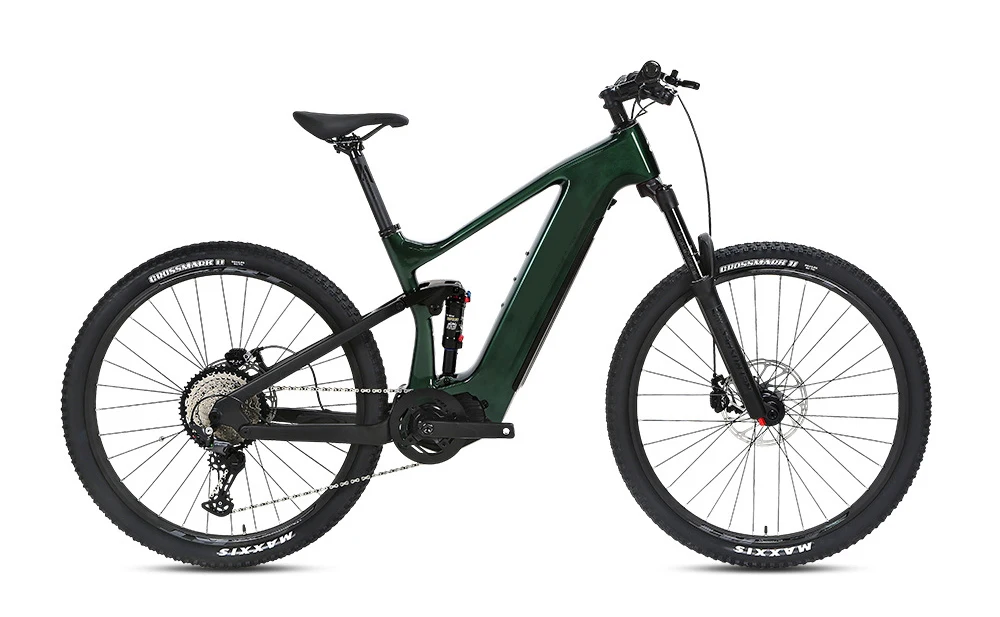

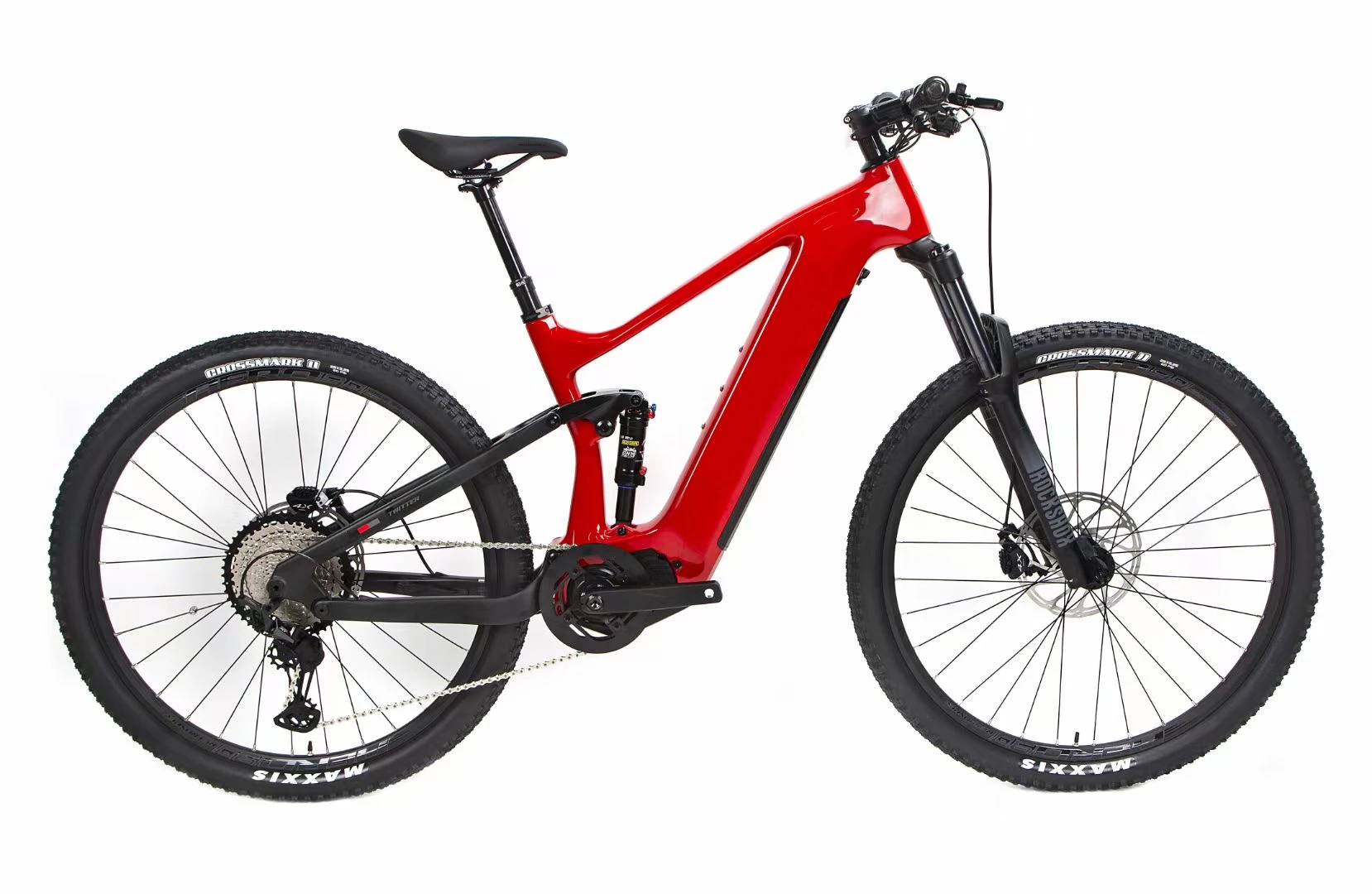

The Long Range Pedal Assist Electric Dual Suspension Mountain Bike is built for riders who crave power, comfort, and endurance on every trail. Designed with a high-performance motor and extended-range battery, it delivers smooth pedal assist support for longer adventures without frequent charging.
Product Description
ConfRev
M560+48V15A
Frame Size
29(27.5)×16″锛�18“锛�
Bike Color
DarkGreen / DarkGrayBlack / RedBlack / BlueBlack锛� HolographicBlack
Net Weight
23KG
Frame
High modulus Inner cables,Thru-axle12*148 Boost,140mm Travel
Handelbar Sets
Alu alloy,Matte,Handlebar 31.8×720,Stem 80, Clamps 34.9mm

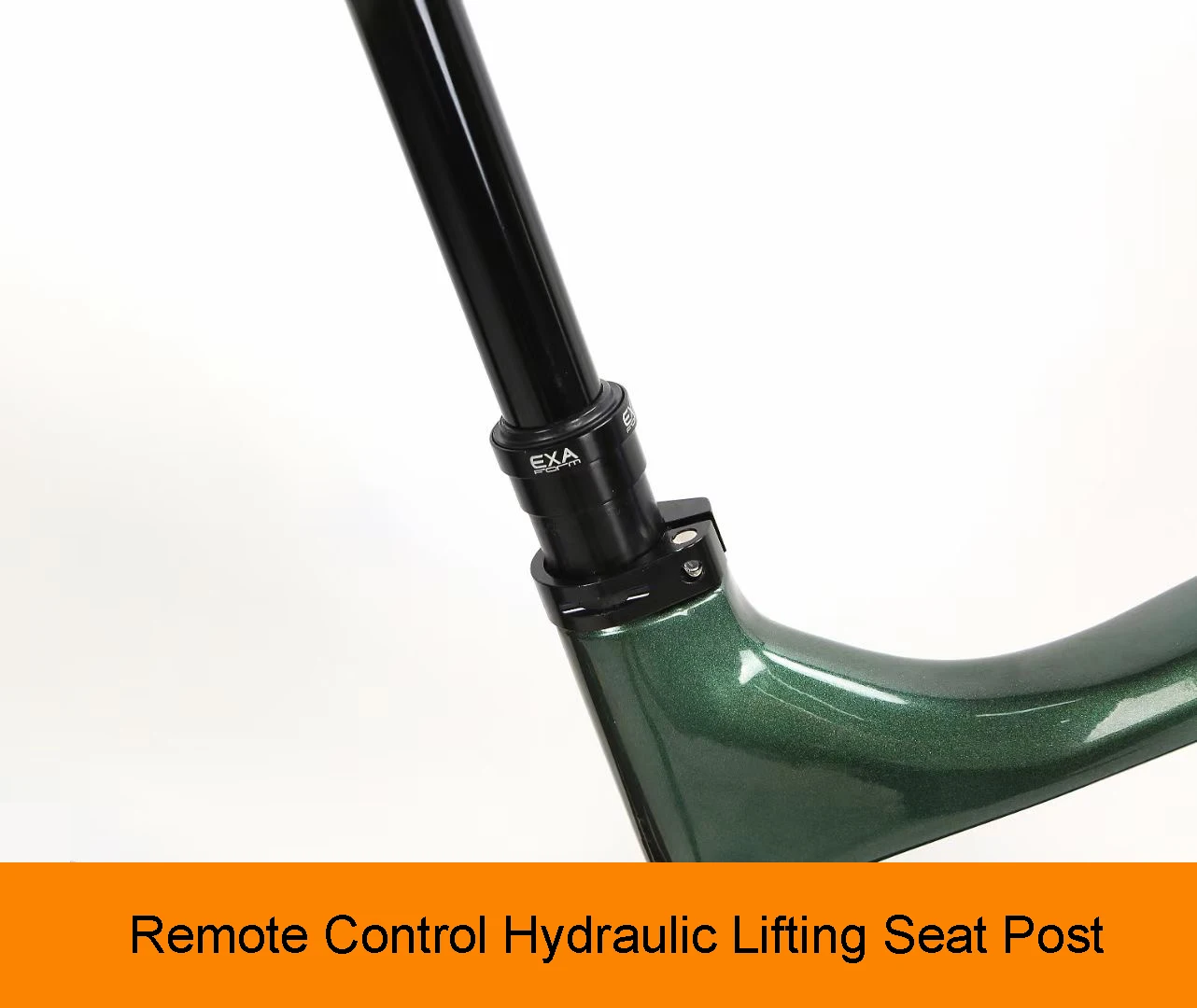

Seat post
KS adjustable lifting with hydraulic, Remote,31.6**395*125mm

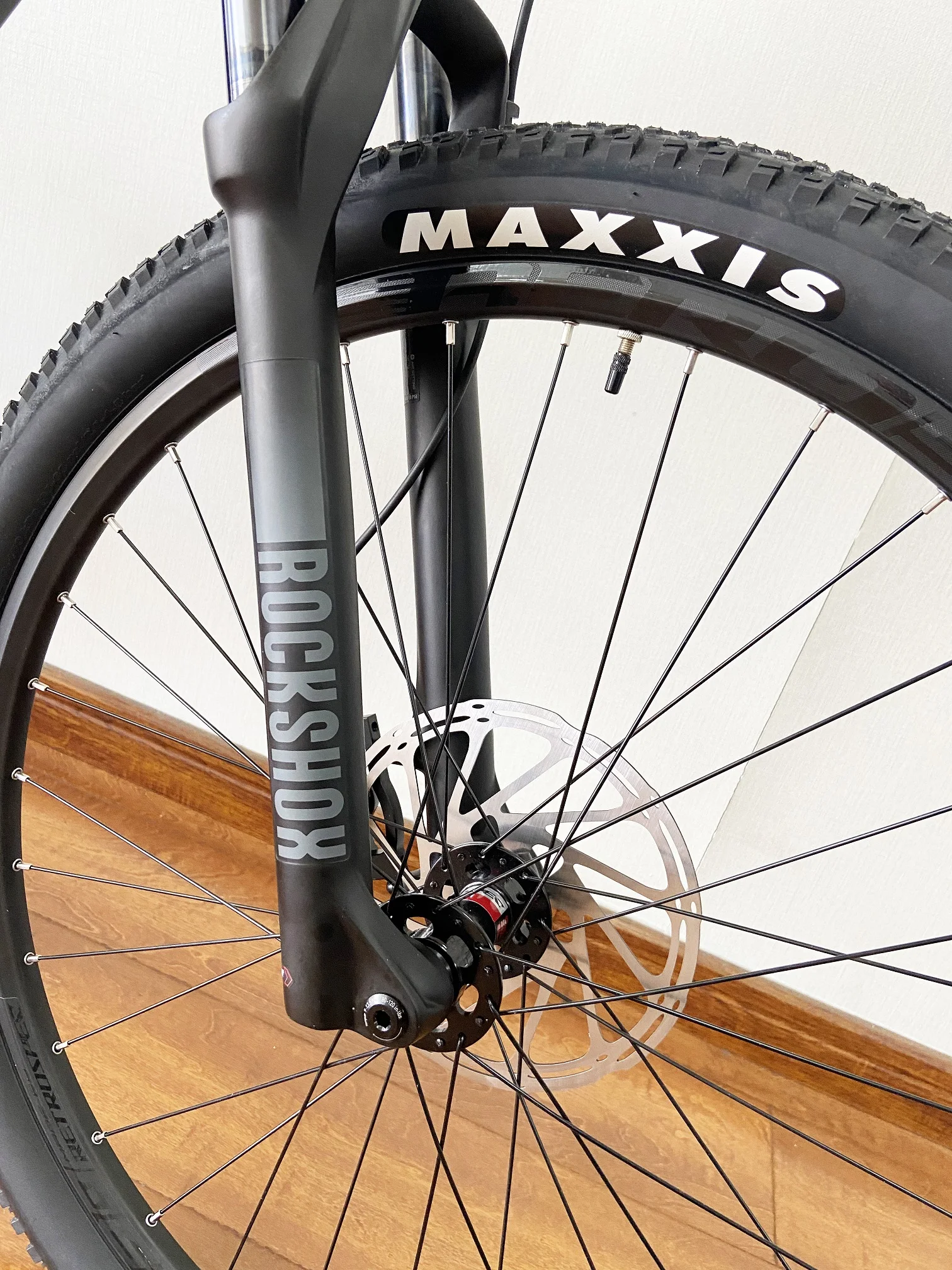

Fork
ROCKSHOX-RECON, Air suspension,150mm,Manual,Thru-axle 15*110 Boost
Rear Shock
DNM rear shox 200*55mm
Head Sets
Alu alloy CNC with sealed Bearings 52*52mm
Derailleur Lever
SHIMANO DEORE/M6100-12S

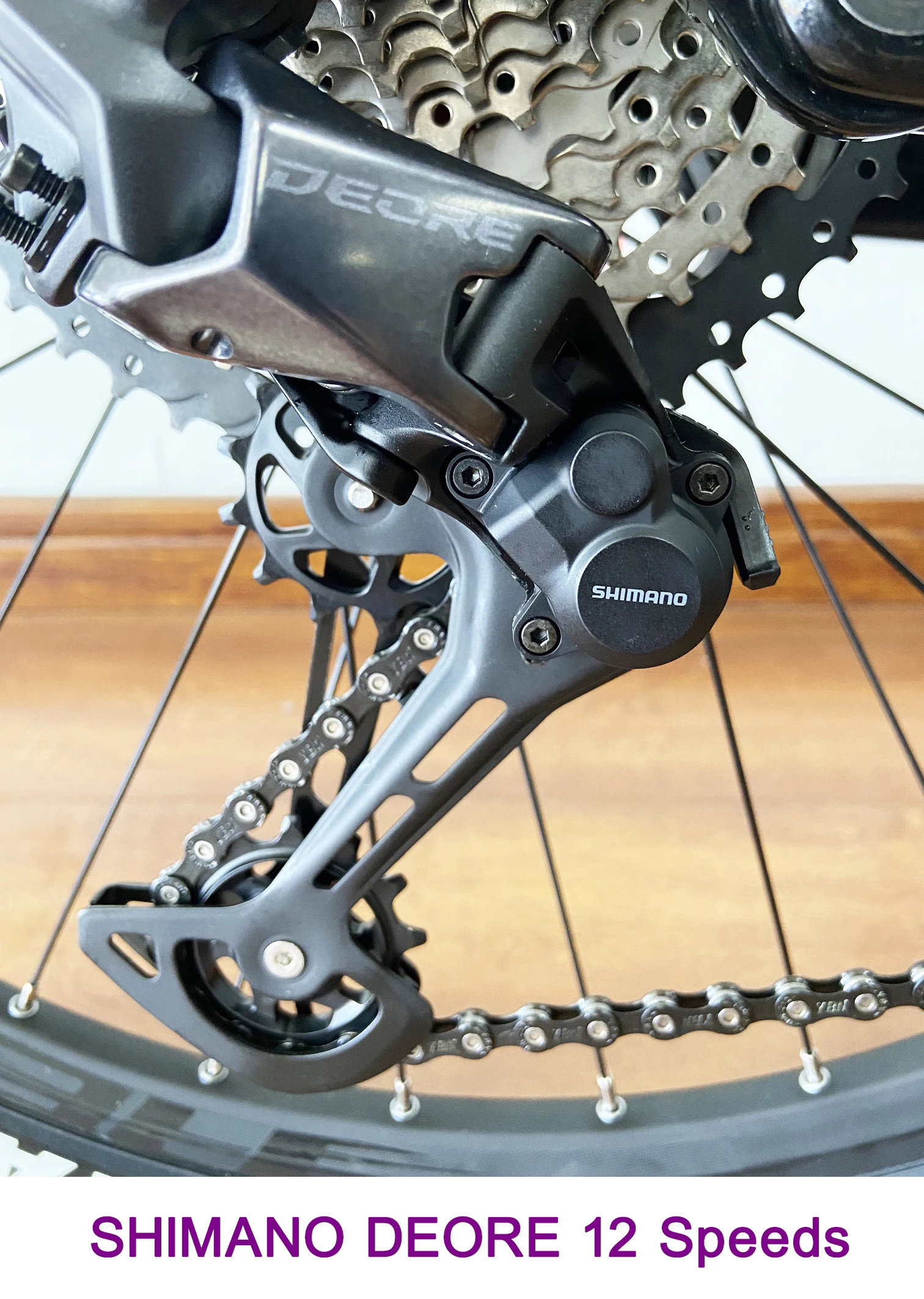

Rear Derailleur
SHIMANO DEORE/M6100-12S

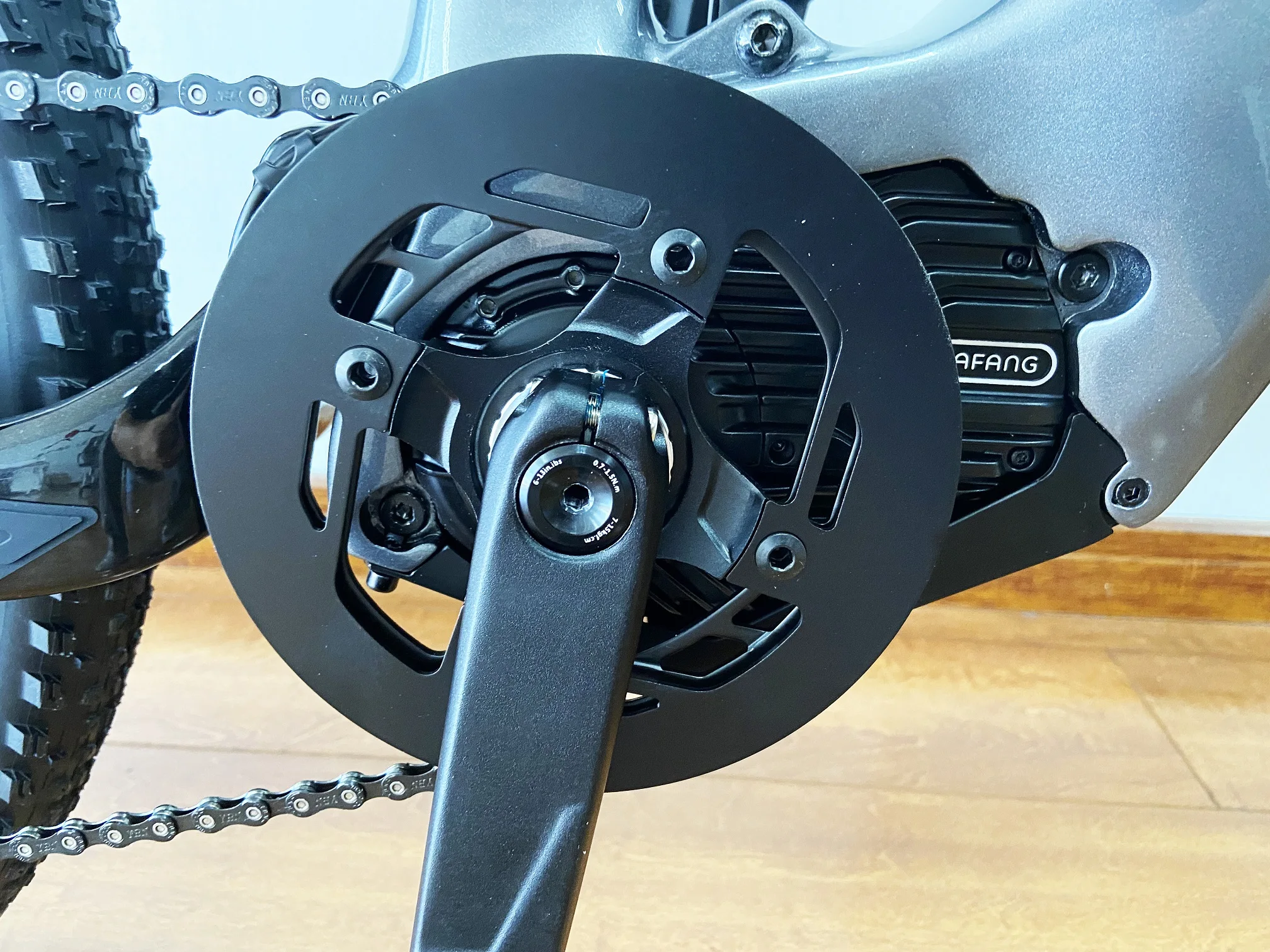

Cranksets
Matching with Mid Motor, 38T
Cassettes
SUNSHINE-12S,11-50T
Chain
SUMC-12S

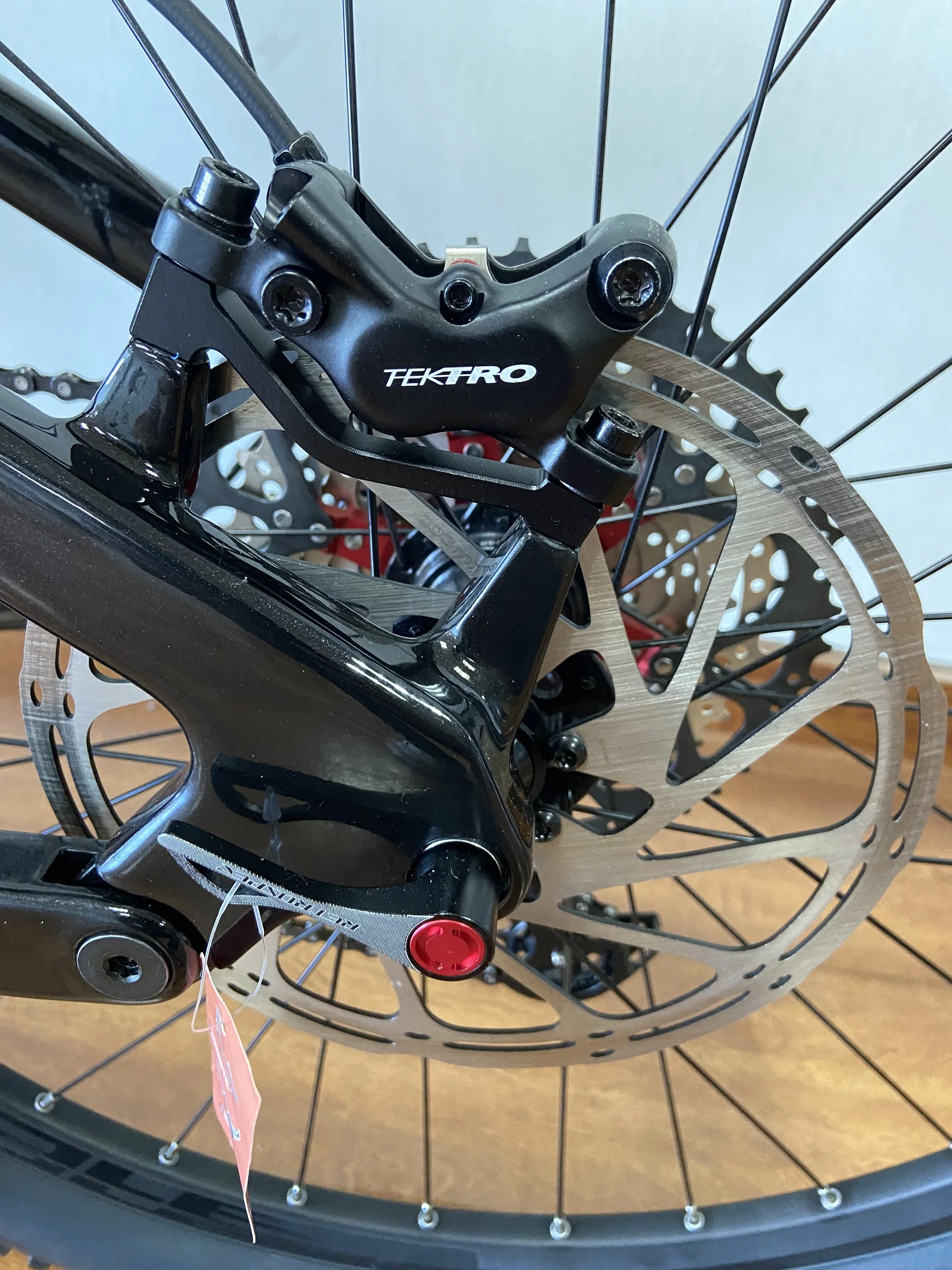

Brake
RS-LD400, Alu alloy CNC, 4-piston hydraulic disc, with Ceramic heat sink, 203/203mm
Hub
Alu alloy,4-sealed Bearings,Slotted,Disc,32Holes,Thru-axle F15×110_R12×148mm Boost
Rim
RS, Alu alloy with Double-wall&Rivets, W24×H19mm
Spoke
SHUNJIU, Circular 14G
Tire
MAXXIS-CROSSMARK, 29/27.5×2.25″
Grips
TW, Circular 22.2×120mm, PU leather&Locking Ring
Saddle
TW Comfortable and Lightweight for MTB

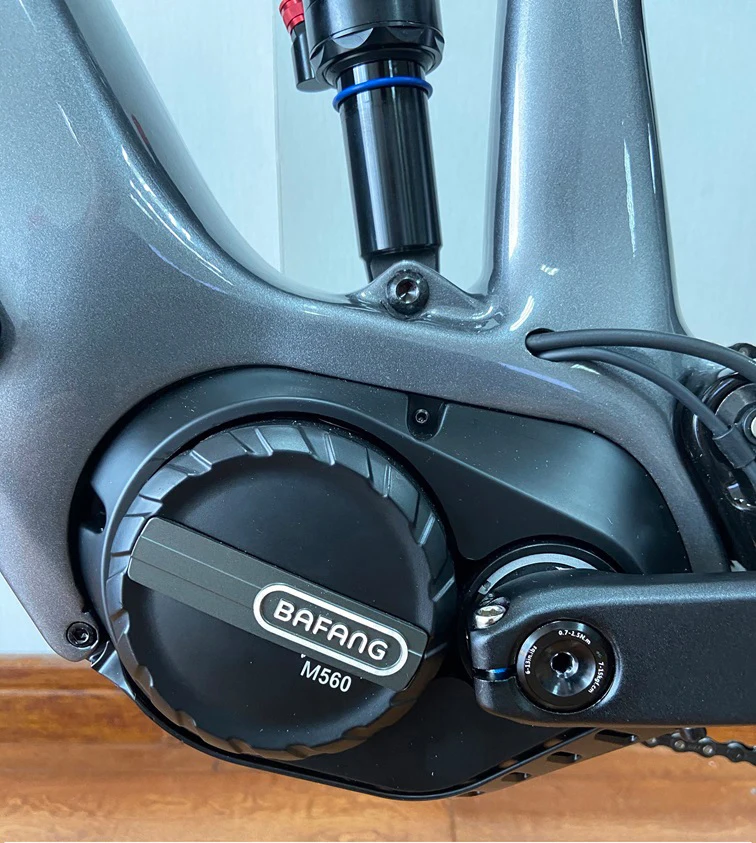

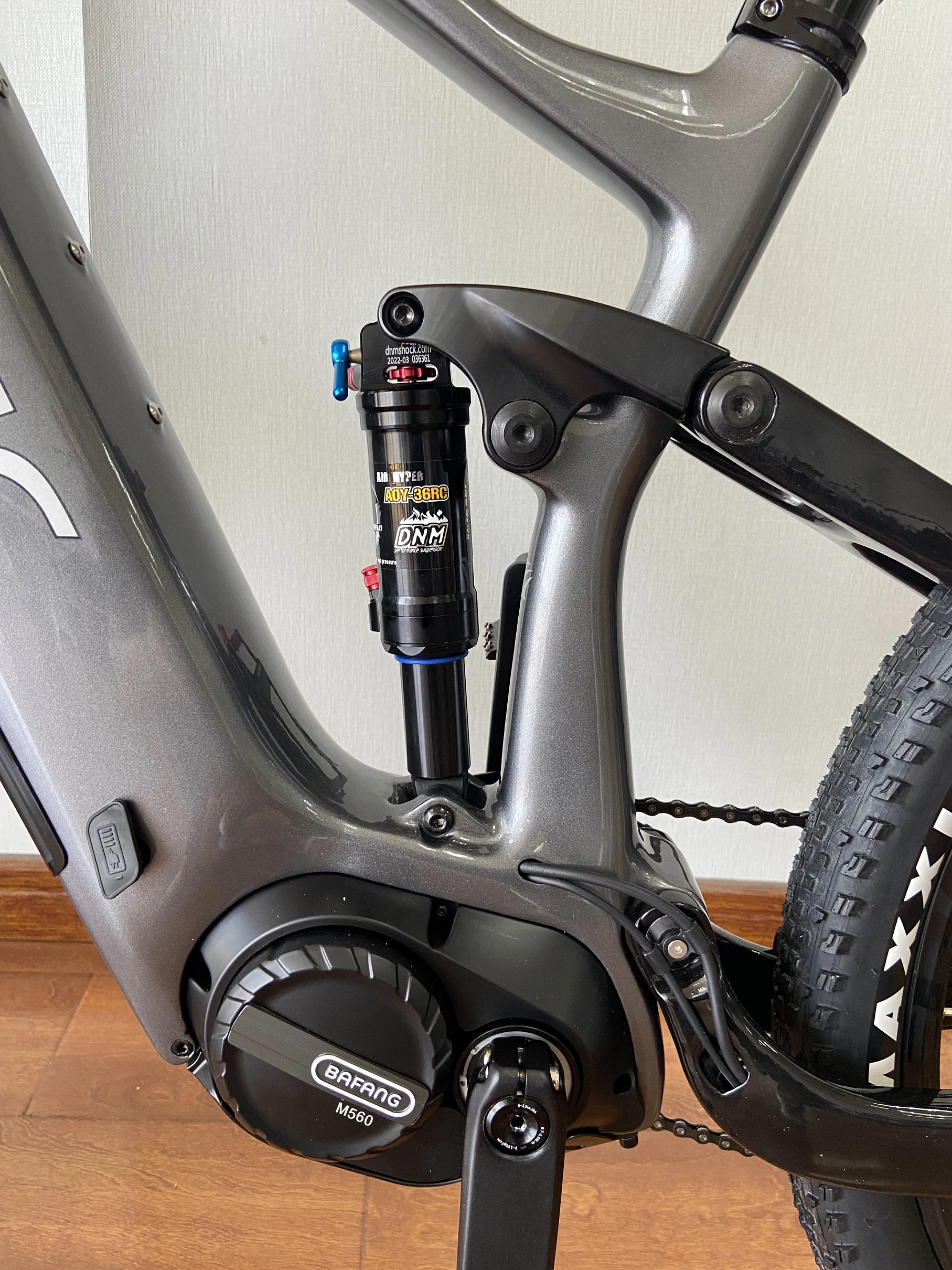

Motor System
Bafang Mid, M560, Mid, 48V 250W
Max Torque
140N.m
Speed Limit
25KMh
Pedal Sensor
Torque+Cadence

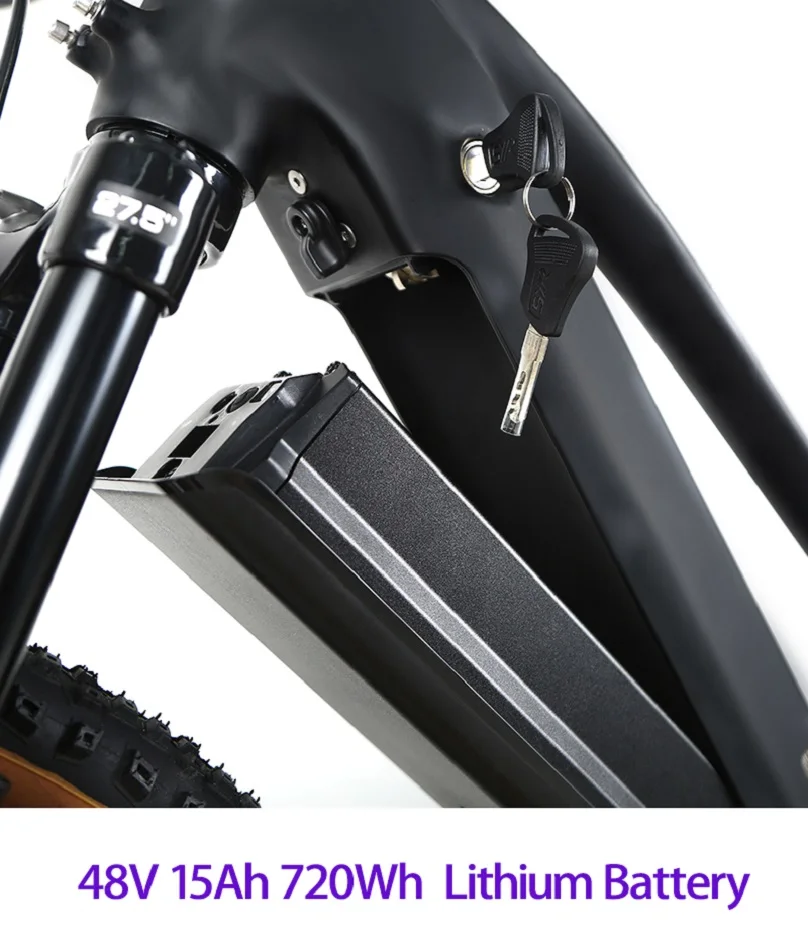

Battery
21700 Li-ion 720Wh, 48V15A
Endurance
130-150KM (pedal assist)
Charging Time
8-9 Hours
Charger
2A, DC2.1

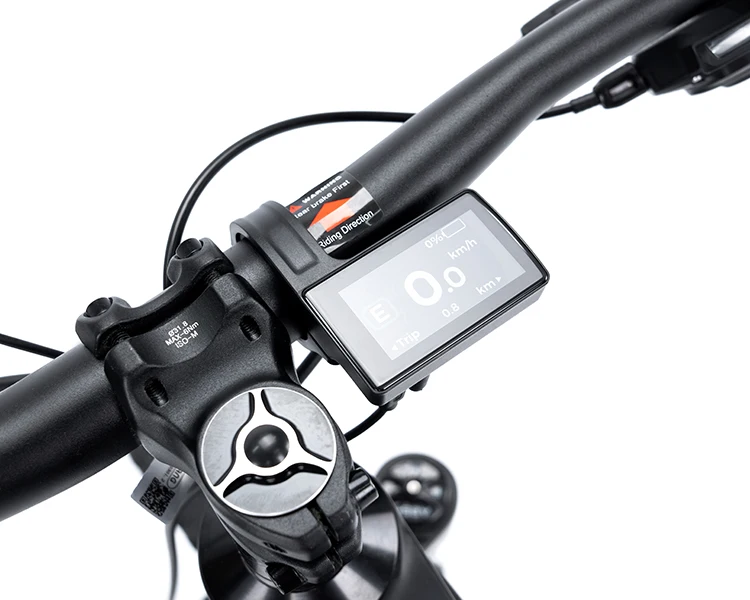

HMI
Bafang, LCD digital, 0-5 Modes
Waterproof
IP X5
Max Load
150 KG
